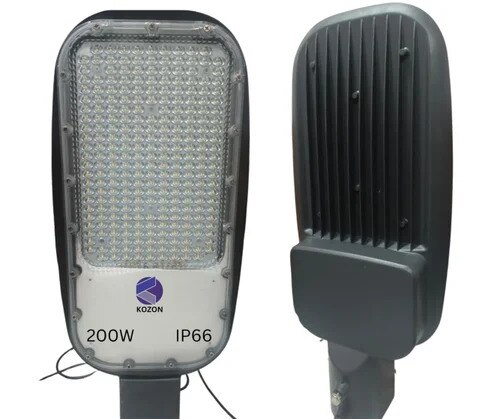

200W MOTION SENSOR LED STREET LIGHT

Minimum order quantity: 10 Piece

Smart Automatic Outdoor Lighting with Dual-Sensor TechnologyKOZON INDIA presents its premium heavy-duty 200W LED Street Light with Integrated Day-Night (Dusk-to-Dawn) & Motion Sensor Technology. Engineered for commercial, industrial, and municipal outdoor infrastructure, this intelligent luminaire eliminates the need for manual switches or external timers.By combining an automatic daylight sensor (photocell) with an advanced microwave radar motion sensor, this light operates completely autonomously. It switches itself on at sunset, dims down during periods of inactivity to save energy, flashes to full brightness the moment movement is detected, and powers off automatically at sunrise.

Technical Specifications and Performance Matrix

Brand: KOZON INDIA

Rated Power: 200 Watts

Input Voltage: 100V - 300V AC, 50Hz (Wide voltage protection range)

Automation Sensors: Dual Control — Dusk-to-Dawn Photocell + Microwave Radar Sensor

Luminous Efficacy: 140 Lumens per Watt

Total Lumen Output: 28,000 Lumens

Color Temperature (CCT): 6000K - 6500K (Cool Daylight)

Sensor Detection Range: 8 to 12 metres

Ingress Protection Rating: IP65 / IP66 Weatherproof

Surge Protection: Built-in 4KV to 10KV surge protector

Housing Material: High-pressure die-cast aluminum alloy

Lifespan: Greater than 50,000 burning hours

Dual Intelligent Sensor Operation ModesThe KOZON INDIA 200W street light features a sophisticated control cycle designed to maximize safety while delivering up to 70% electricity savings compared to conventional fixtures:

Daytime Mode (Auto-Off): The built-in day-night sensor continuously monitors ambient light. During daytime hours, the street light remains completely turned off, even if people or vehicles move underneath it, preventing unnecessary power wastage.

Nighttime Standby Mode (20-30% Brightness): As ambient darkness sets in at dusk, the day-night sensor triggers the light to turn on automatically. If the area is vacant, it operates at a energy-saving standby mode (dimmed ambient glow) to maintain baseline security.

Nighttime Active Mode (100% Brightness): The moment the microwave radar sensor detects a moving pedestrian, car, or object within its 8 to 12-metre range, it instantly ramps up to full 200W (28,000 lumens) intensity.

Certification- BIS

Color Temperature (CCT)- 6500 K

Body Material- Aluminium Die-Cast

LED Make- Bridgelux

Feature- Motion Sensor

Mounting Type- Pole Mounted

Model- Sun Down

Application- Gram Panchayat, Residential, Commercial, Outdoor, Road and Street, Highway, Industrial

Design- Stick
